Using HTTP Request Node in Workflows

Overview

SAFE Workflows now supports calling external HTTP(S) APIs (Jira, Slack, and customer endpoints) directly from a workflow via a new HTTP Request node (ACTION_HTTP_REQUEST). Authentication is handled through a centrally managed, encrypted Credentials Library in admin-service; secrets are never exposed to the workflow builder and never leave storage in plaintext. A synchronous Test Request lets builders validate a call from the canvas before saving, running the identical hardened path as a real execution.

Key Capabilities

HTTP Request node: method, URL, query params, headers, and body (none / JSON / form-urlencoded / raw), referencing a credential.
Credentials Library: create / list / edit / delete credentials of type None, API Key (header or query), Bearer Token, Basic Auth, each bound to a mandatory allowed-domains allowlist.
Test Request: run an unsaved node config synchronously and see the (redacted) response, through the same security path as a real run.
Hardened egress: SSRF protection (DNS-pinned dialer + IP block-list + per-redirect re-check), per-credential exact-host allowlist, TLS validation, 30s timeout, 5-redirect and 1 MB caps.
Structured response + branching: every call returns a consistent envelope (ok, statusCode, headers, body, json, …); downstream nodes branch on {{ ok }}.
Stream behaviors: None / Expander / Per Item / Reducer for array-shaped responses.

HTTP Request Node

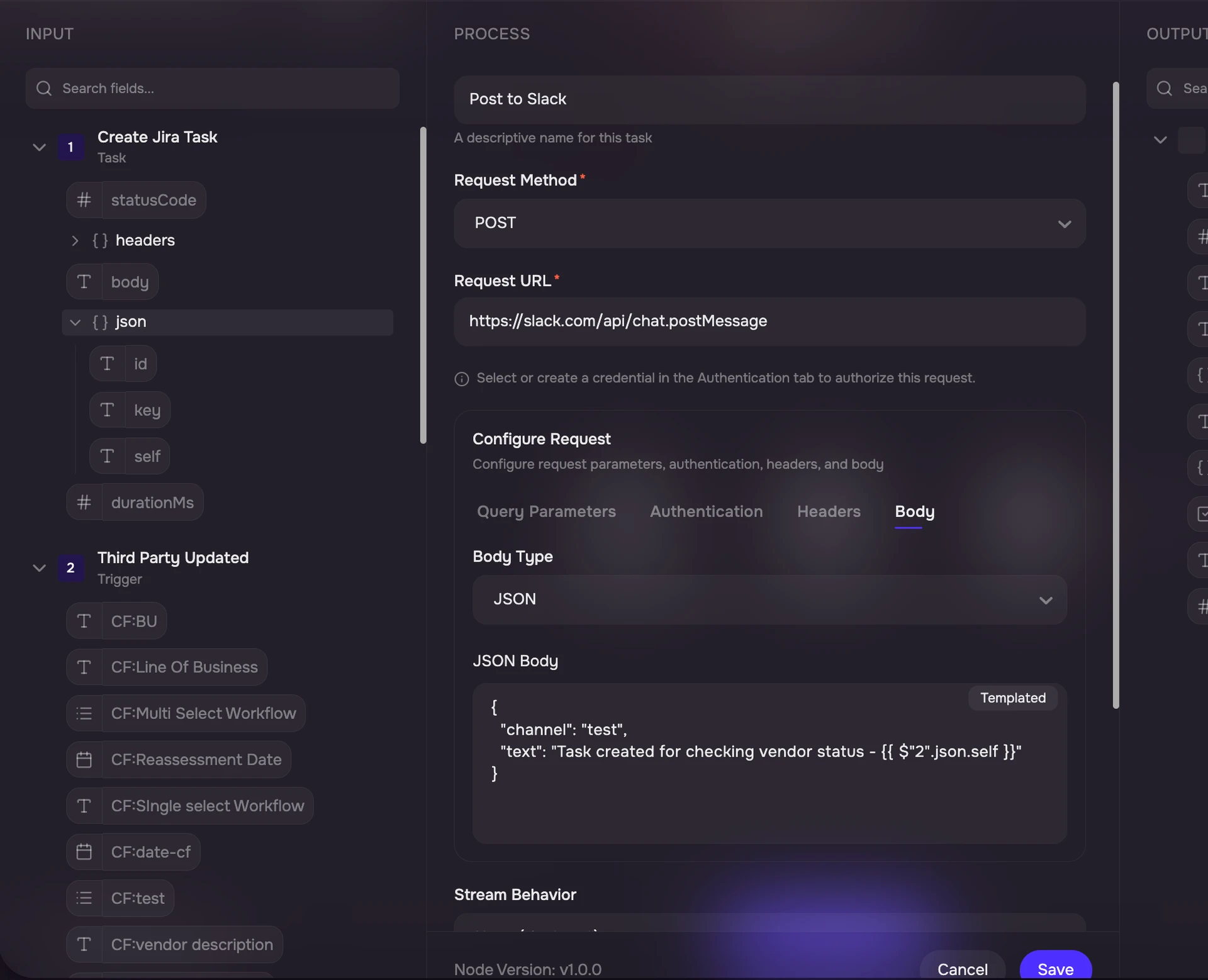

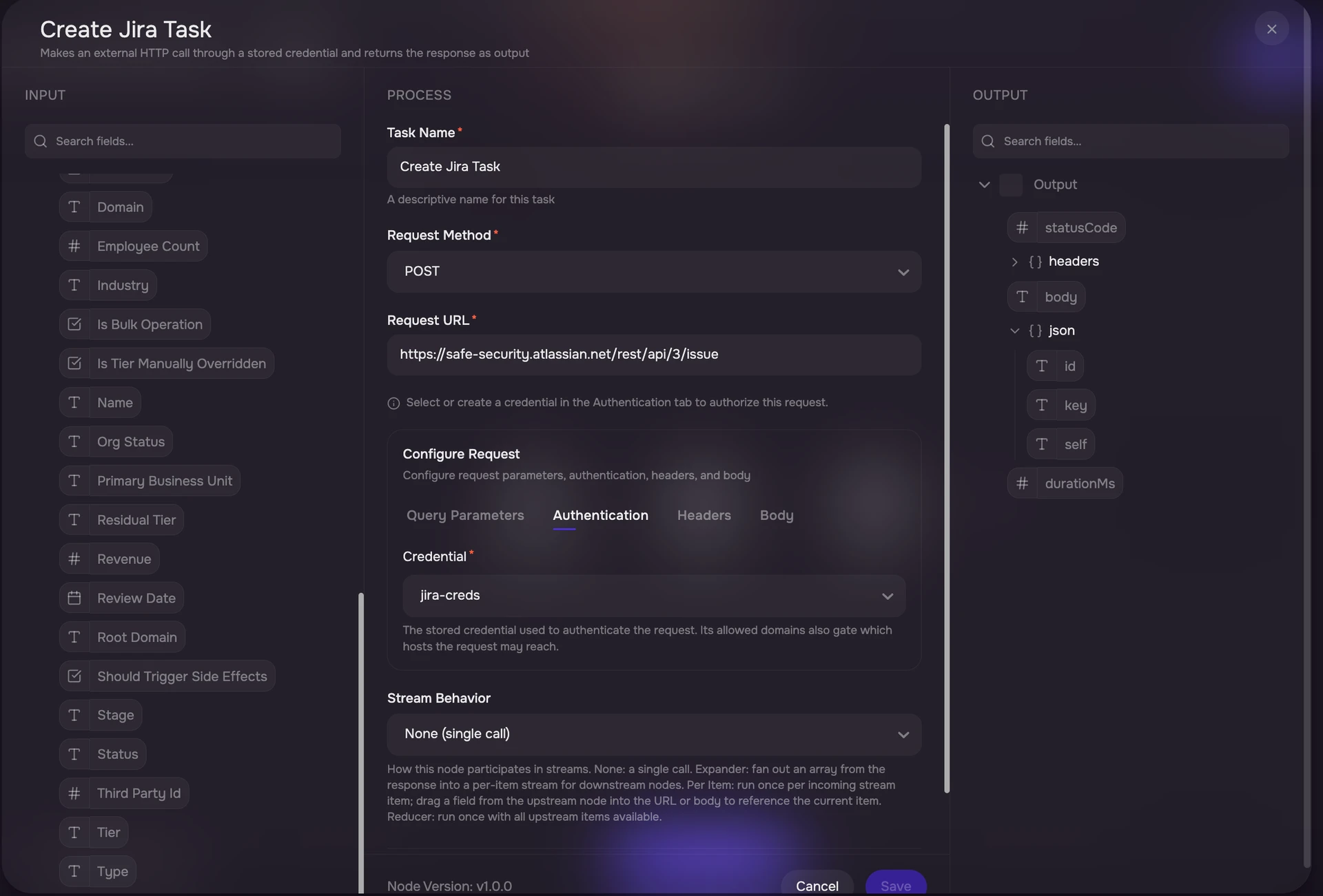

The ACTION_HTTP_REQUEST node is configured with a schema-driven form:

Field	Notes
Method	GET / POST / PUT / PATCH / DELETE / HEAD / OPTIONS
URL	Variable-picker enabled; validated at save (scheme, host, no userinfo, no control bytes)
Query Params / Headers	List-builder rows (key/value)
Body Type	none / json / form-urlencoded / raw (auto Content-Type)
Body	Supports `{{ }}` templates (masked at save, resolved at run)
Credential	Required; picked from the Credentials Library
Stream Behavior	None (default) / Expander / Per Item / Reducer, with an Items Path

Credentials Library

Credentials live in admin-service (admin_credentials, per-tenant DB) and are surfaced through a management UI. Sensitive values are encrypted by the Auth service (KMS-backed) and stored as ciphertext; reads return the secret masked.

Type	Config	Sensitive
`none`	(no secret)	—
`api_key`	key, location (header \| query), fieldName	key
`bearer_token`	token	token
`basic_auth`	username, password	password

Allowed domains are mandatory (exact host, no wildcards, no empty): the credential can only be sent to those hosts.

Test Request

From the node config panel, Test Request runs the current (unsaved) config synchronously and returns the redacted response envelope. It resolves the referenced credential over a System-to-System call (the builder never sees the secret) and runs the identical core/httpnode egress path as a real run, closing the preview-endpoint bypass class. Security blocks (for example a host outside the allowlist) are shown to the tester; an unresolvable credential returns a clear error.

Response Handling & Branching

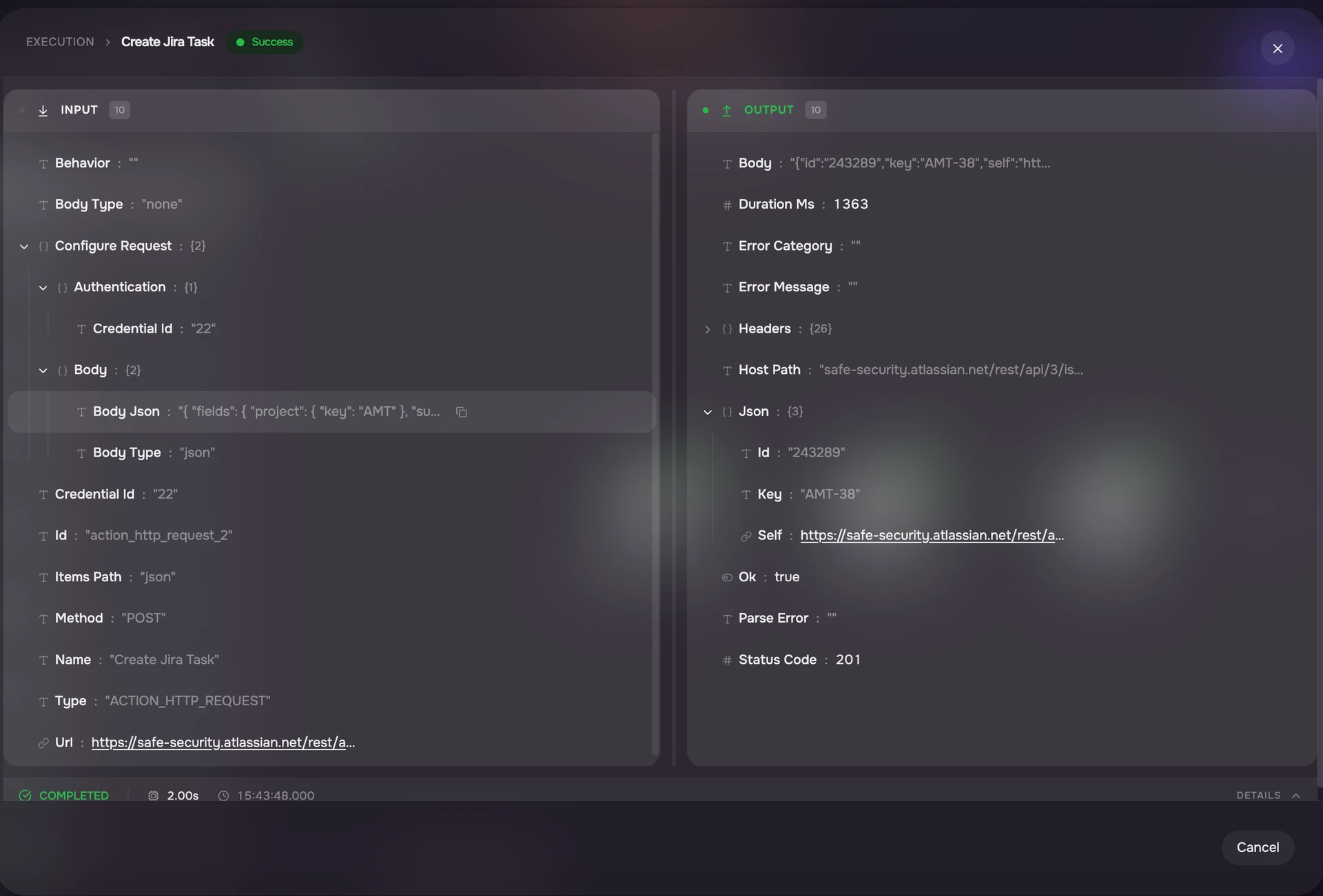

Every call returns a structured envelope:

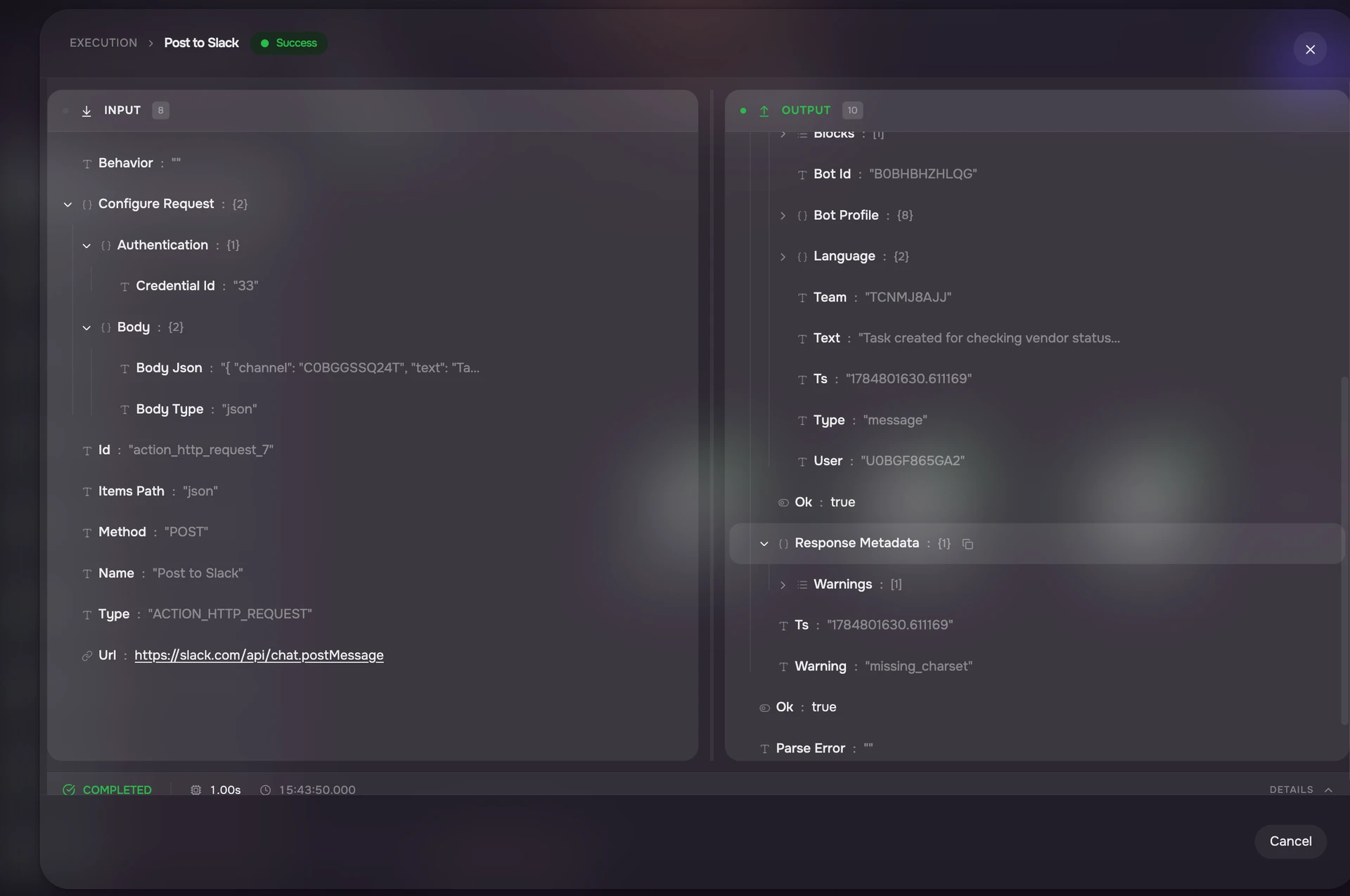

ok (bool), statusCode, headers (sensitive headers redacted), body, json, durationMs, parseError, hostPath, errorCategory, errorMessage.

An HTTP response (any status, including 4xx/5xx/429/401) is a successful step; downstream nodes branch on {{ ok }}.
A security / config / infrastructure failure (SSRF block, credential-domain-not-allowed, TLS invalid, credential missing, decrypt failure, …) halts the run (the step fails, non-retryable): you cannot branch around a security block.

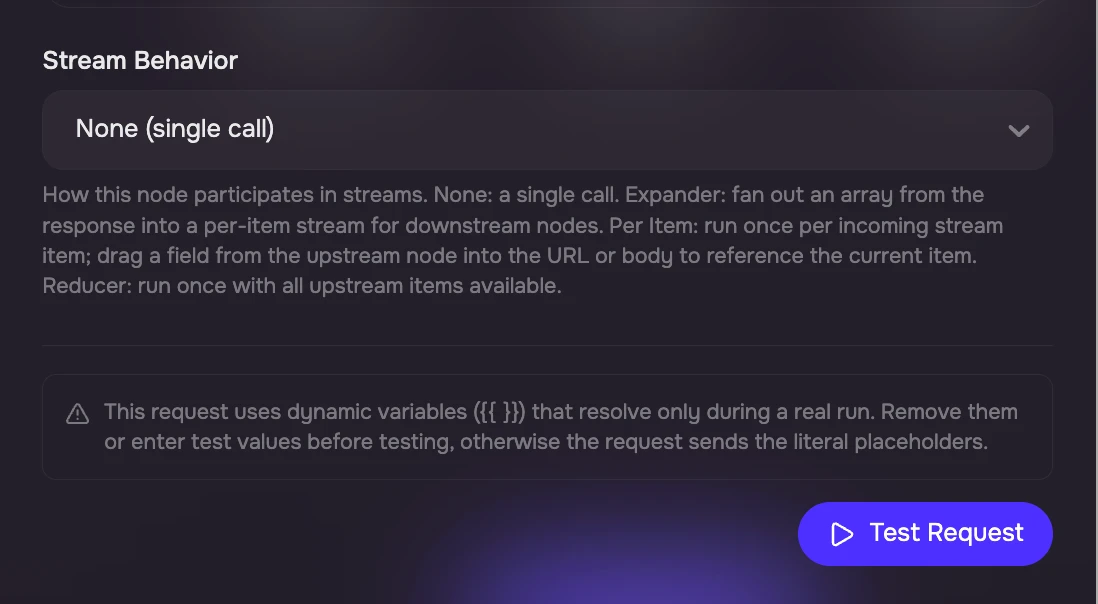

Stream Behaviors

Behavior	Cardinality	HTTP node does
None (default)	1 to 1	one call, returns the envelope
Expander	1 to N	fans a response array at `itemsPath` into a downstream stream
Per Item	N to N	one call per incoming item (`{{ $item.* }}`)
Reducer	N to 1	one call with all items (`{{ items }}`)

Security & Guardrails

SSRF: DNS-pinned net.Dialer.Control checks the actual connecting IP against a hardcoded block-list (loopback, RFC1918, link-local, CGNAT, IPv6 ULA/link-local, IPv4-mapped) at dial time (defeats DNS-rebinding TOCTOU); redirects re-check per hop; https to http downgrade blocked.
Credential exfiltration: per-credential exact-host allowlist, enforced before the secret is applied and on every redirect; Test Request inherits it.
Whitelisted Domains: Only a list of certain whitelisted domains are allowed to be called by this node, to get certain domain whitelisted contact customer success.
TLS validation on by default; 30s timeout; 5-redirect and 1 MB response caps.
No plaintext across boundaries: admin returns ciphertext, flow decrypts via Auth at point-of-use; secrets are never persisted, logged, or placed in Temporal payloads / step output.
RBAC: credential create/manage restricted to admin + TPRM Admin; node edit gated to workflow builders.
Redaction: Authorization, X-API-Key, API-Key, Cookie, Set-Cookie, WWW-Authenticate redacted in responses and logs; only credentialId is carried in workflow export.

Example

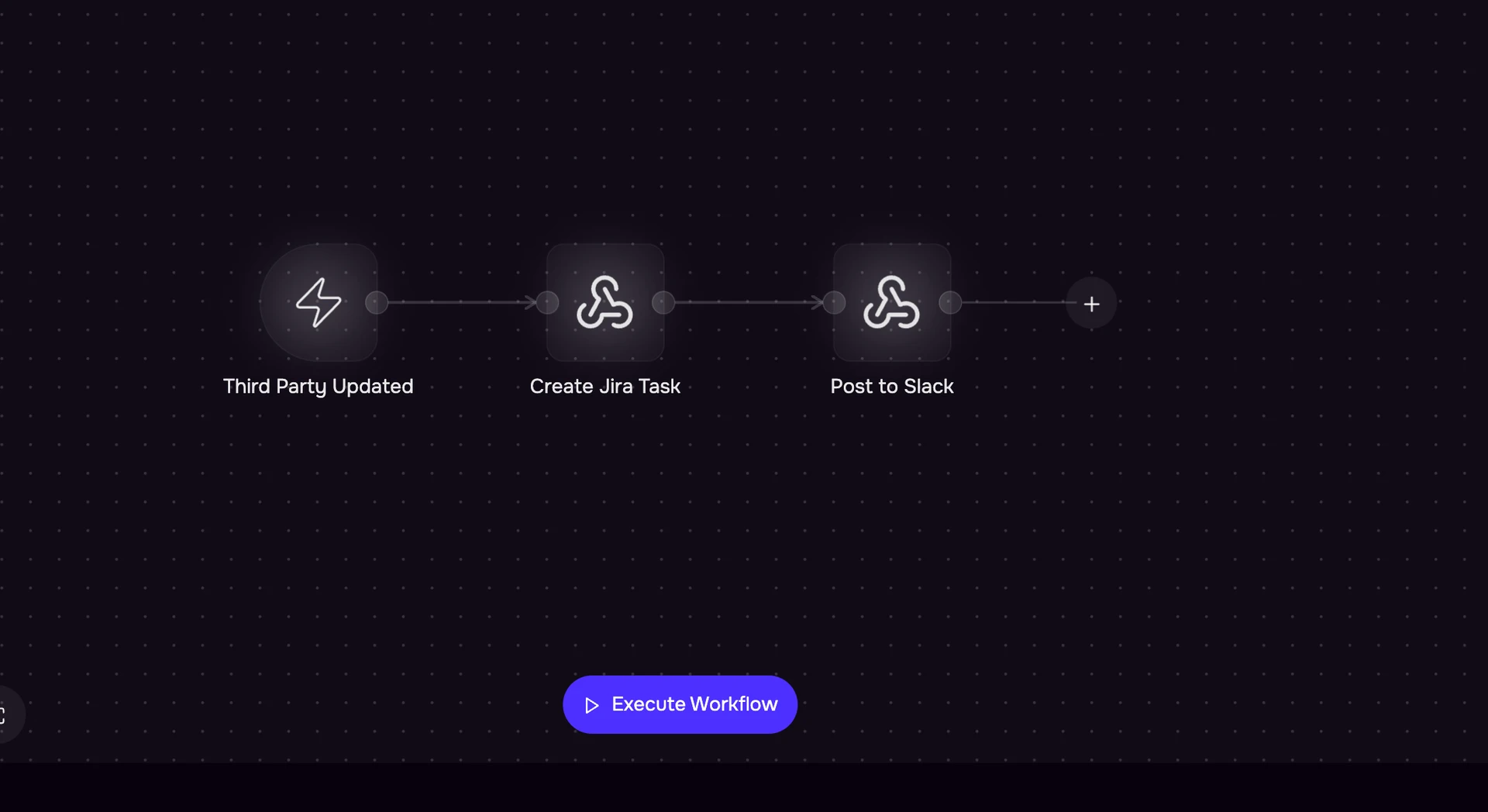

An Example JSON for creating JIRA task and post message on slack on Third Party status update

{
  "formatVersion": "1.0",
  "exportedAt": "2026-07-23T10:16:06Z",
  "source": {
    "workflowId": "19afa363-8879-4c5f-a71d-a38803eefa57",
    "versionId": "b6cc738c-eecd-4efd-839d-6c1964f71b49",
    "version": 29,
    "checksum": "65a62e6489347f5fa7b9f938af5c485930647fbdc0d01cb45a30118d613c6988"
  },
  "definition": {
    "id": "workflow-1784801739218",
    "name": "Third party Updated Jira/Slack",
    "isStarred": false,
    "tags": [],
    "tasks": [
      {
        "id": 2,
        "name": "Create Jira Task",
        "type": "ACTION_HTTP_REQUEST",
        "version": "1.0.0",
        "config": {
          "id": "action_http_request_2",
          "url": "https://safe-security.atlassian.net/rest/api/3/issue",
          "name": "Create Jira Task",
          "type": "ACTION_HTTP_REQUEST",
          "method": "POST",
          "behavior": "",
          "bodyType": "none",
          "itemsPath": "json",
          "credentialId": "22",
          "configureRequest": {
            "body": {
              "bodyJson": {
                "fields": {
                  "project": {
                    "key": "AMT"
                  },
                  "summary": "Task created to check vendor status",
                  "issuetype": {
                    "name": "Task"
                  }
                }
              },
              "bodyType": "json"
            },
            "authentication": {
              "credentialId": "22"
            }
          },
          "_httpSampleOutput": {
            "ok": true,
            "body": "",
            "json": {
              "id": "",
              "key": "",
              "self": ""
            },
            "headers": {
              "Nel": "",
              "Via": "",
              "Date": "",
              "Vary": "",
              "Server": "",
              "X-Cache": "",
              "Report-To": "",
              "Connection": "",
              "Set-Cookie": "",
              "Atl-Traceid": "",
              "X-Amz-Cf-Id": "",
              "Content-Type": "",
              "X-Aaccountid": "",
              "X-Amz-Cf-Pop": "",
              "X-Arequestid": "",
              "Cache-Control": "",
              "Server-Timing": "",
              "Atl-Request-Id": "",
              "Beta-Ratelimit": "",
              "X-Xss-Protection": "",
              "Timing-Allow-Origin": "",
              "Beta-Ratelimit-Policy": "",
              "X-Beta-Ratelimit-Limit": "",
              "X-Content-Type-Options": "",
              "Strict-Transport-Security": "",
              "X-Beta-Ratelimit-Remaining": ""
            },
            "hostPath": "safe-security.atlassian.net/rest/api/3/issue",
            "durationMs": 1468,
            "statusCode": 201
          }
        },
        "targets": [
          {
            "id": 7
          }
        ],
        "position": {
          "x": 450,
          "y": 150
        },
        "executionType": "DETERMINISTIC"
      },
      {
        "id": 6,
        "name": "Third Party Updated",
        "type": "TRIGGER_THIRD_PARTY_UPDATED",
        "version": "1.0.0",
        "config": {
          "id": "trigger_third_party_updated_6",
          "name": "Third Party Updated",
          "type": "TRIGGER_THIRD_PARTY_UPDATED",
          "eventType": "TRIGGER_THIRD_PARTY_UPDATED",
          "triggerFields": {
            "status": true
          }
        },
        "targets": [
          {
            "id": 2
          }
        ],
        "position": {
          "x": 250,
          "y": 150
        },
        "executionType": "DETERMINISTIC"
      },
      {
        "id": 7,
        "name": "Post to Slack",
        "type": "ACTION_HTTP_REQUEST",
        "version": "1.0.0",
        "config": {
          "id": "action_http_request_7",
          "url": "https://slack.com/api/chat.postMessage",
          "name": "Post to Slack",
          "type": "ACTION_HTTP_REQUEST",
          "method": "POST",
          "behavior": "",
          "itemsPath": "json",
          "configureRequest": {
            "body": {
              "bodyJson": "{\n  \"channel\": \"C0BGGSSQ24T\",\n  \"text\": \"Task created for checking vendor status - {{ $\"2\".json.self }}\"\n}",
              "bodyType": "json"
            },
            "authentication": {
              "credentialId": "33"
            }
          }
        },
        "targets": [],
        "position": {
          "x": 650,
          "y": 150
        },
        "executionType": "DETERMINISTIC"
      }
    ],
    "description": "test API node",
    "metadata": {},
    "createdAt": "2026-07-23T10:15:39.218Z",
    "updatedAt": "2026-07-23T10:15:39.218Z",
    "createdBy": {
      "userId": 0,
      "userEmail": ""
    },
    "updatedBy": {
      "userId": 0,
      "userEmail": ""
    }
  },
  "tags": [],
  "workflowMode": "AI_MANAGED",
  "usecases": [
    "TPRM"
  ]
}
